Rota-Spike - Security Topping
The ultimate deterrent

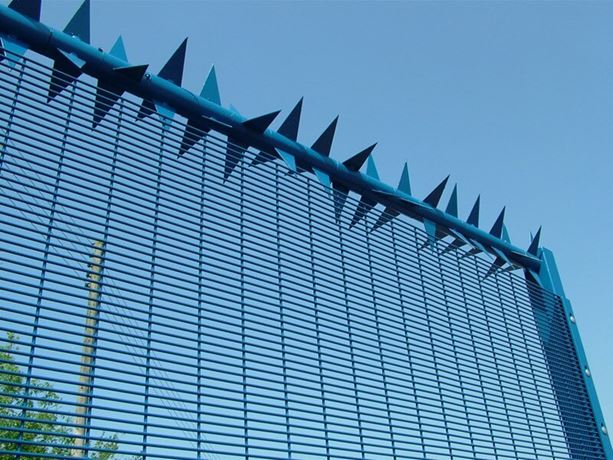

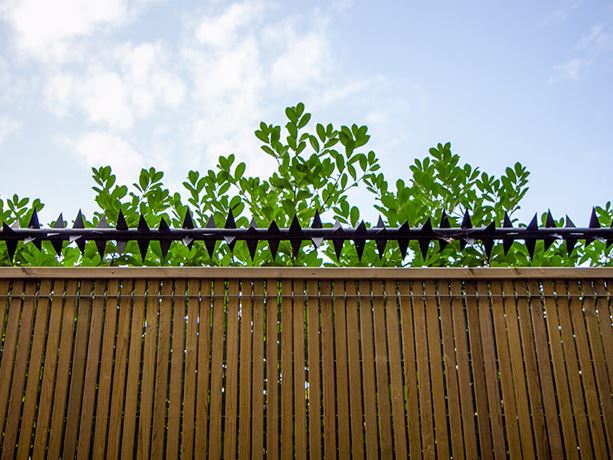

With fearsomely sharp rotating steel blades on a steel tube, Rota-Spike offers insurmountable protection against intruders.
Easy to install almost anywhere!
Rota-Spike can be supplied with brackets that are available for fixing above any type of fence, gate or wall. This makes it easy to utilise on buildings, to protect vulnerable points, for example upstairs windows where it can be possible for intruders to gain access from adjacent buildings or roofs.
Security that's finished to last

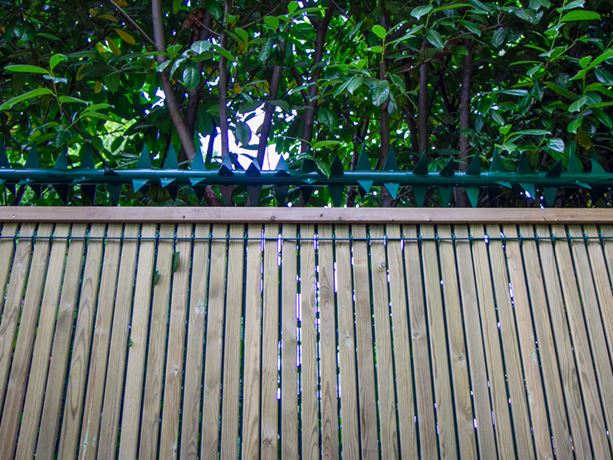

Rota-Spike is made entirely from hot-dip galvanised steel, it is also available with an additional durable coating in green, black, white, blue or grey, (other colours on request) so it stays looking not only fierce but good too.
Note: We recommend "Danger Signs" are used with all security toppings, please order Code 329330.
Note: for corners use 2no. End Brackets 019991
In some cases, the installation of security extras may require planning permission or Building Regulations approval, if in doubt, please consult your relevant Local Authority department.
Guidelines on anti intruder toppings.Rota-Spike is sold in 6m lengths comprising of :
- 064000BM - 6m Galv top rail.
- 010994 - Rota spikes for rail
- 019991 - End bracket.
- 010998 - Intermediate bracket
- 019992 - Mitre
Sizes:
- Supplied in 6m lengths.
- Inner tube 41.5mm diameter x 2mm thick.
- 3no. blades 90mm long rotating on outer tube
- 48.3mm diameter.
- Brackets at 3m centres when vertical (on top of wall) and 2m when horizontal (on face of wall).
Alternative brackets for fixing to Triple Point Palisade fencing
Please note we also supply Rota Spike Brackets for use with existing installations of Corrugated, Triple Point Palisade fencing (Although we do not supply Triple Point Palisade we do supply and manufacture our own more robust Barbican Range of security fencing, for more information please visit
www.jacksons-security.co.uk
Fittings available for Corrugated/Triple Point Palisade:
010985 Intermediate Brackets 248mm high (including spike) 65x6mm flat bar with 44m diameter hole drilled 350mm to centre line from bottom of bracket to take top rail.
010986 End Brackets 248mm high (including spike) 65x6mm flat bar with spigot fixed 350mm to center line from bottom of bracket to take the top rail.
Intermediate brackets drilled twice, Ends and Corners drilled 4 times for self tapping screws 5.5x25mm.
073162 Tamper-Drive Security Screw
Document Downloads
- Rota-Spike Installation Instructions
- Rota Spike above Chainlink or Weldmesh Fencing Details - J204001
- Rota Spike Bolted to Top of Wall - J404007sht1
- Rota Spike for Face Fixing - J404007sht2
- Rota Spike for Steel Palisade Fencing - J404007sht3

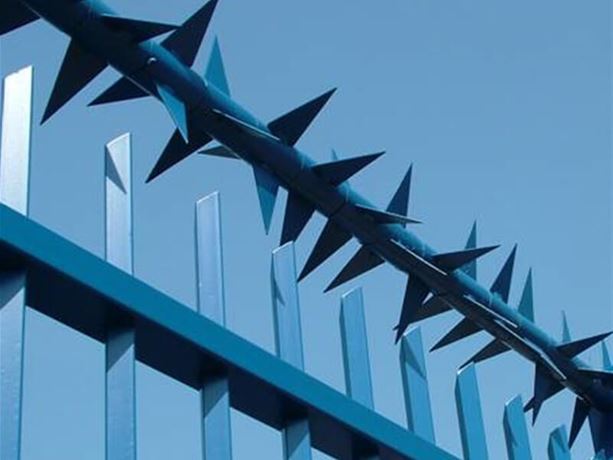

- Rota Spike above Barbican - J104013
- Wall Face Fixed Cranked Rota Spike - J404165
