Horizontal Tongue and Groove Fence Panels

About the panel

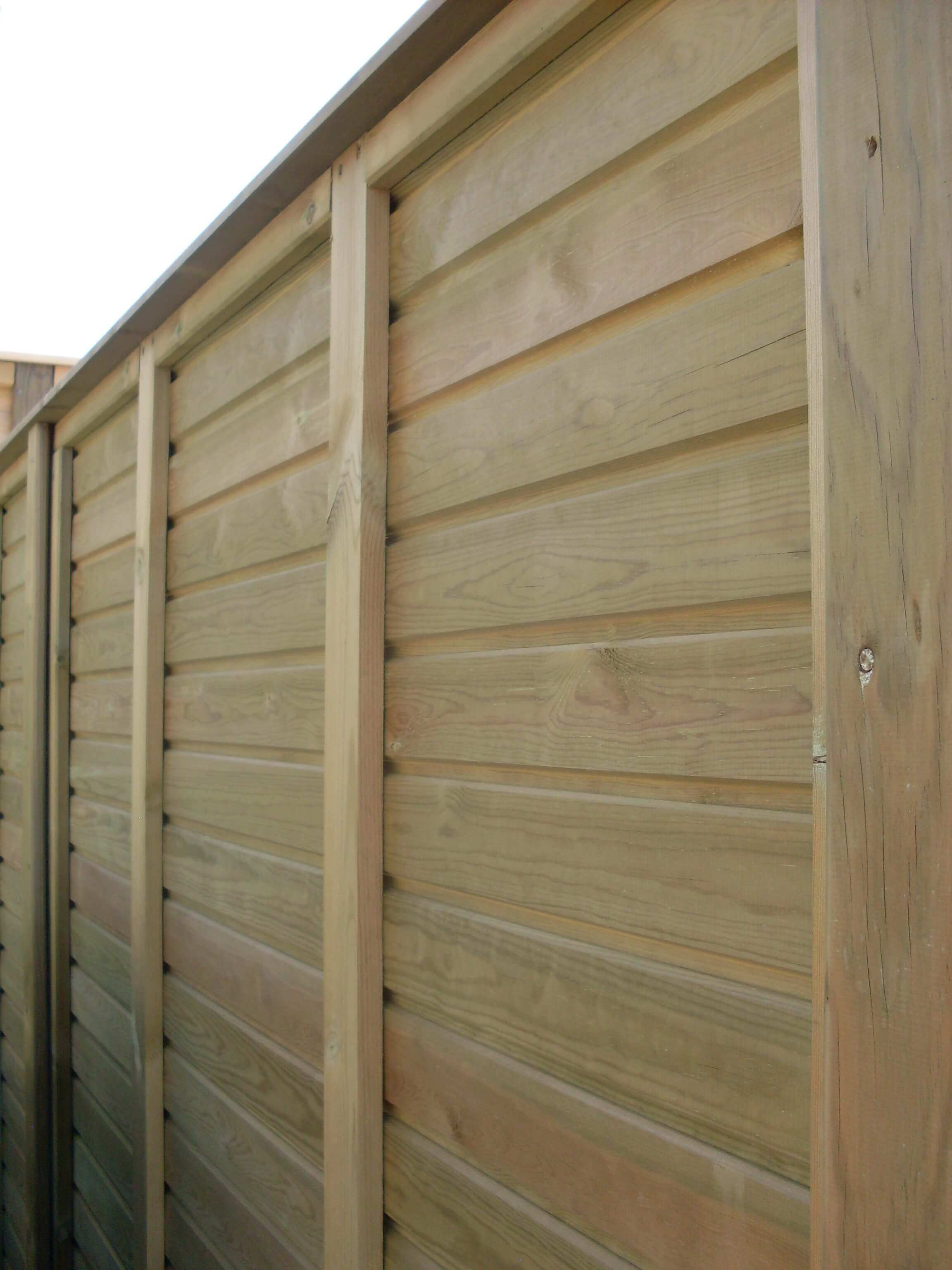

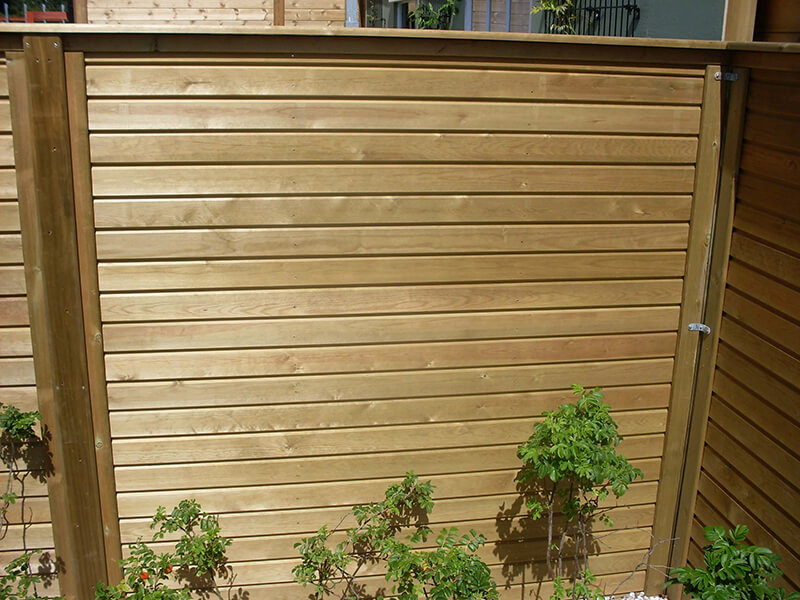

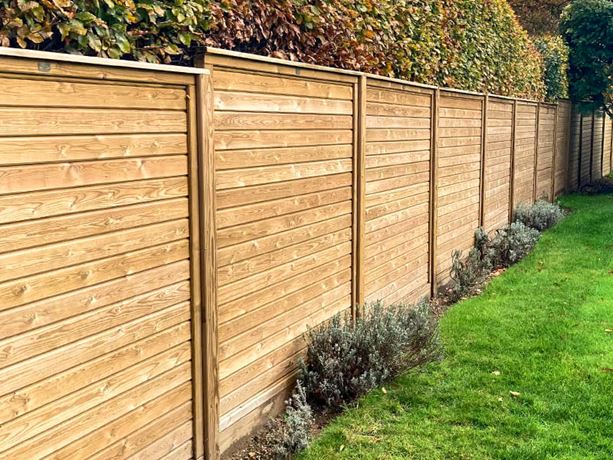

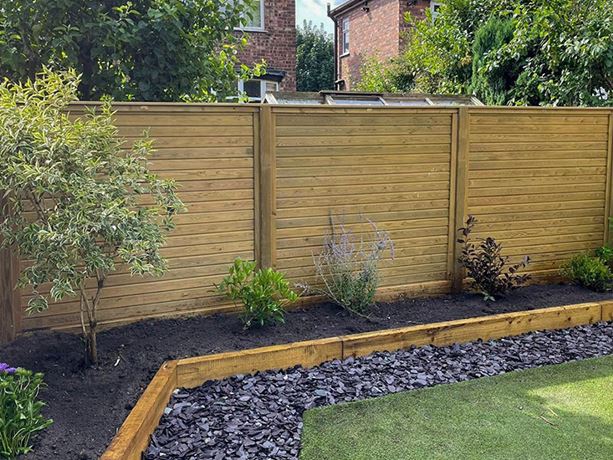

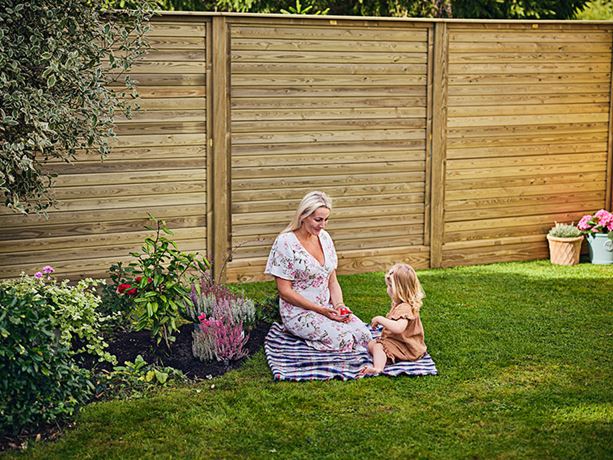

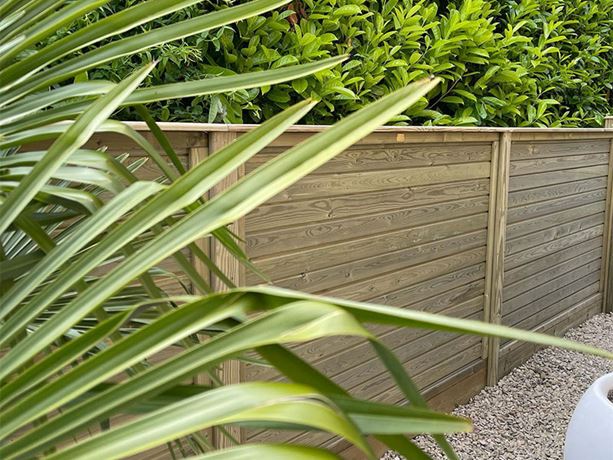

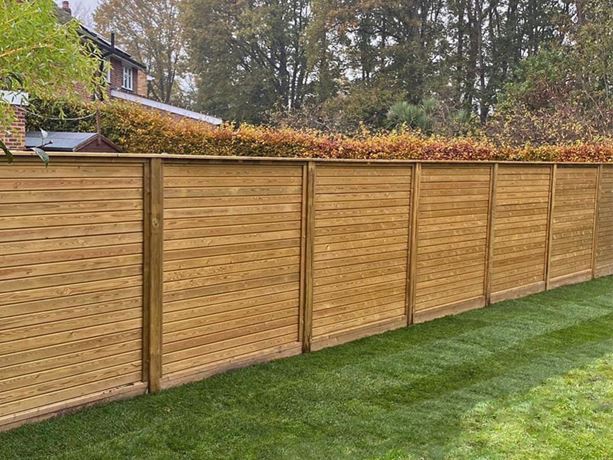

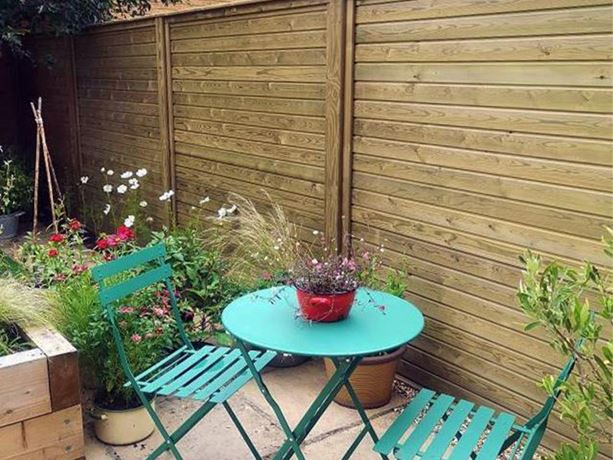

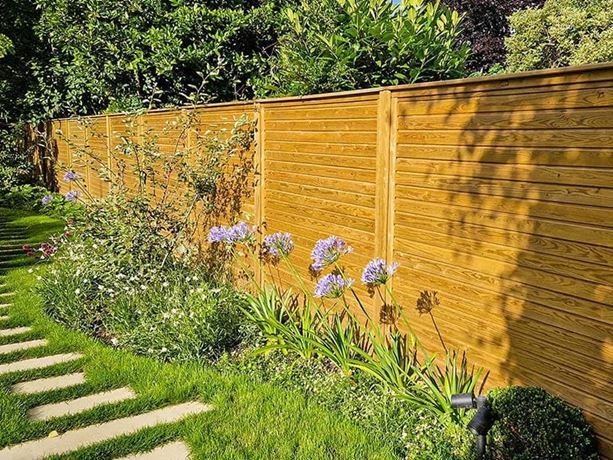

Horizontal Tongue and Groove Effect fence panels have a contemporary luxury feel often chosen by garden designers. Made using Tongue and Groove style boards, this solid fence panel offers complete privacy.

Panel Specification

Our Horizontal Tongue and Groove Effect fence panels are made using our trademark vacuum pressure treated Jakcure® softwood timber, guaranteed for 25 years. Built using stainless steel fixings to ensure longevity, our fence panels are built to last.

• Panels are 1830mm wide as standard

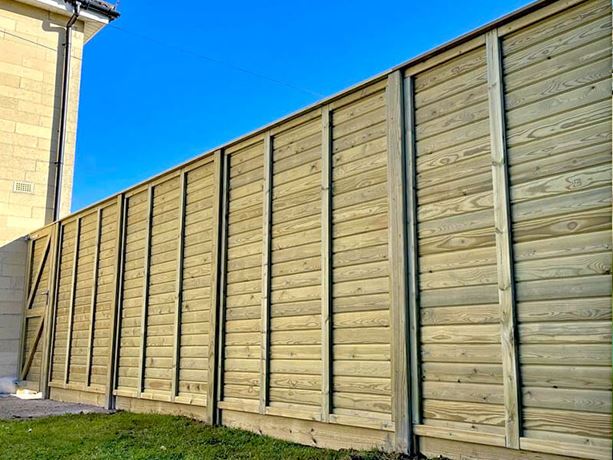

• Top and bottom rails 70 x 51mm and sides 45 x 51mm
• The centre of the panel is given additional support with one or two 70mm wide rails depending on the fence height.

Please Note: dimensions may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.

Fence Post Options – Standard Slotted Jakpost®, Heavy Duty Slotted Jakposts®,  Mi-T® Metal Post​

​Gravel board options-  Standard Gravel Board, Hedgehog Friendly Gravel Board

To meet the conditions of the 25 year guarantee, gravel boards are required where panels are in contact with the ground.

​Installation Advice - Installation Instructions ​

Reducing the width of the fence panel – All fence panel are 1.83m wide as standard, if you require a narrower fence panel, you can cut the fence panel down on site using our cut down kit. Please remember to treat any cut ends with Jakcure Cut Treatment, to ensure you adhere to our 25-year guarantee guidelines.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

Horizontal Tongue & Groove Effect Fence Panels are designed to be used with our slotted Jakposts.

Slotted Fence Posts

Explore our wider range of Tongue & Groove Effect Panels below.

Tongue and Groove Effect

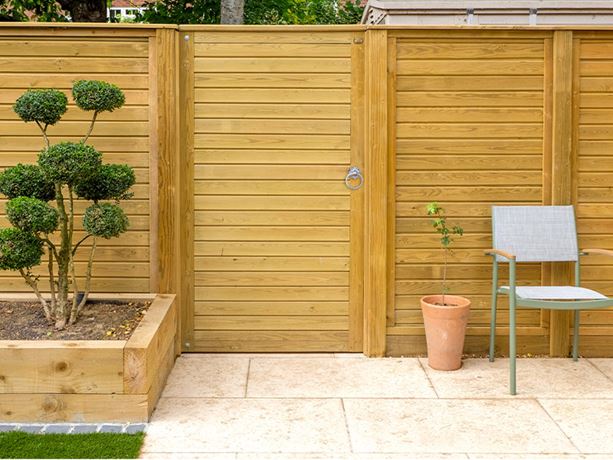

We also offer matching Horizontal Tongue & Groove garden gates which you can find here:

Horizontal Tongue & Groove Garden Gates

Capping Rails can be used on these panels. Use the button below to see our Capping Rail range.

Capping Rails

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&C's page.

Gravel Boards

If you are installing the product yourself, view our instructions below:

Installing Panel Fencing Instructions

Installing Timber Fence Post Instructions
