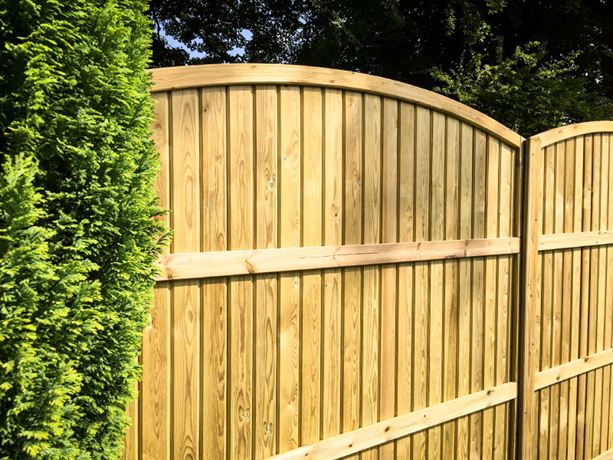

Convex Tongue And Groove Panels

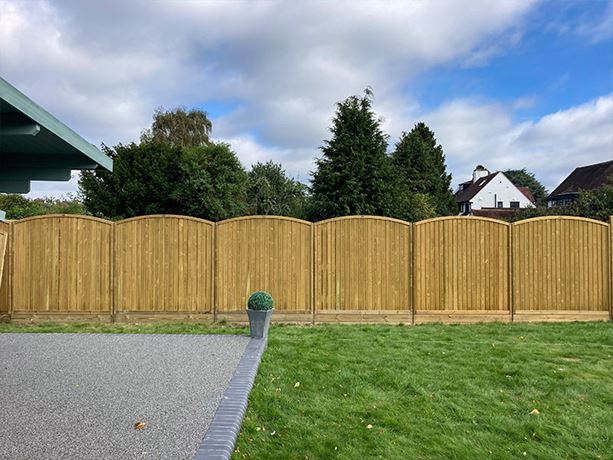

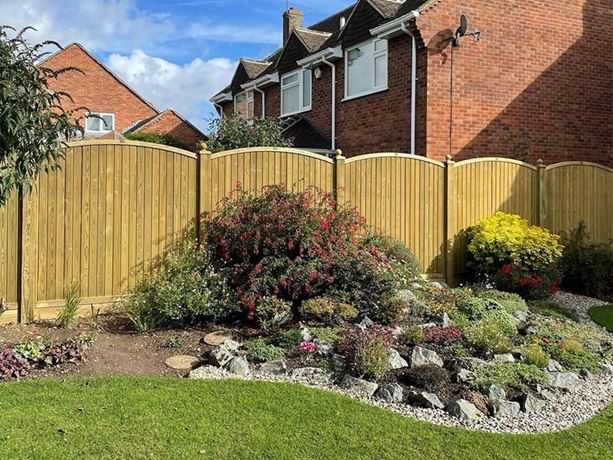

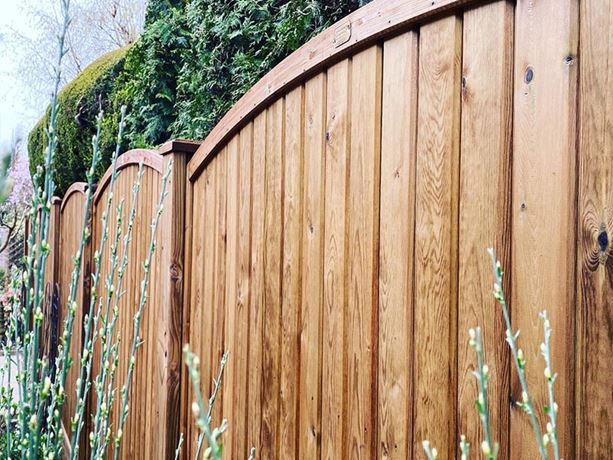

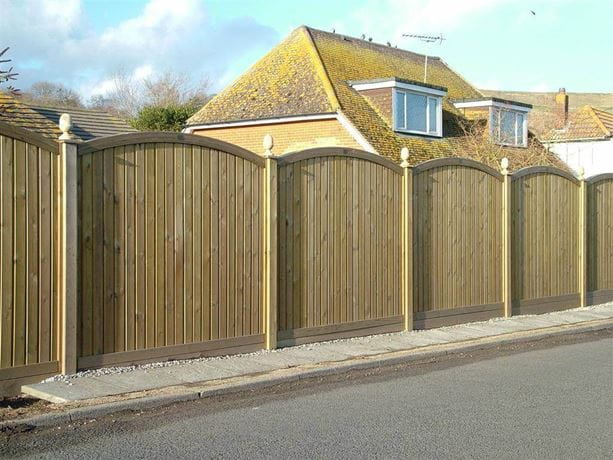

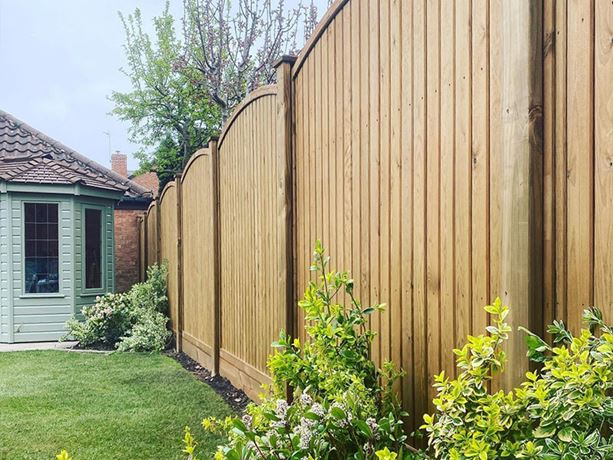

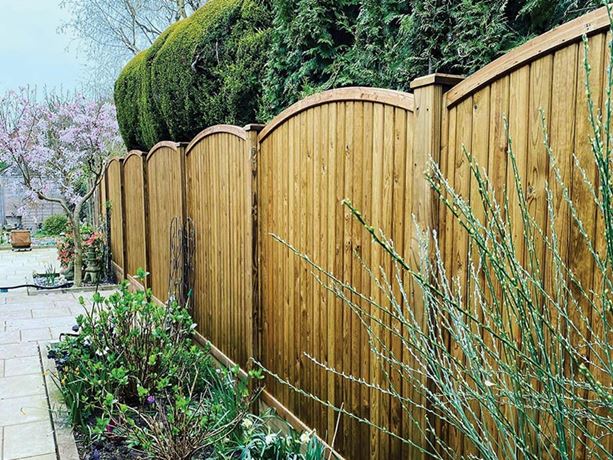

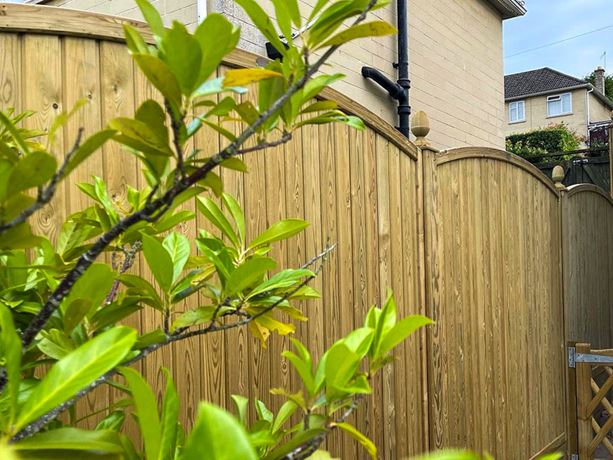

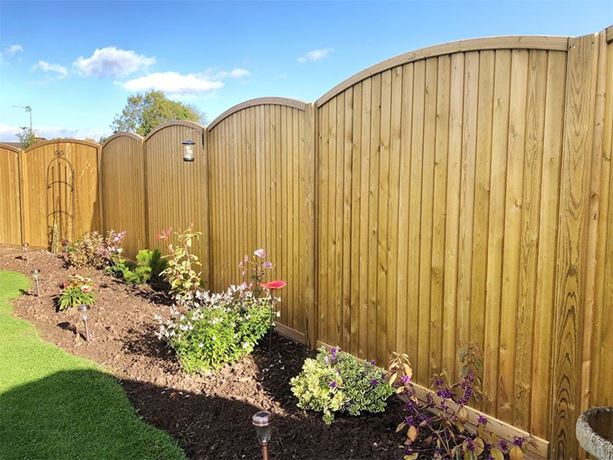

Convex Tongue and Groove Fence Panels

About the panel

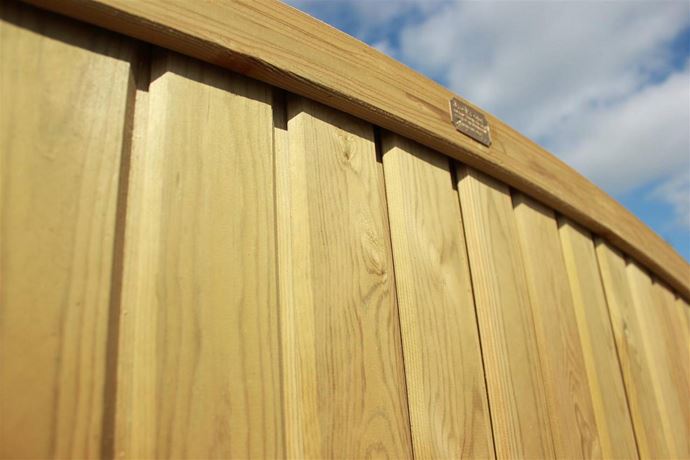

Luxury flat top fence panels constructed using Tongue and Groove effect style boards. The design originates from the Victorian era and allows two flat pieces of timber to be joined together. The design today is often used to achieve a traditional wooden panelled effect that offers a premium finish and look.

Panel Specification

Our Convex Tongue and Groove Effect fence panels are made using our trademark vacuum pressure treated Jakcure® softwood timber, guaranteed for 25 years. Built using stainless steel fixings to ensure longevity, our fence panels are built to last.

• ​Fully framed with 50mm top and bottom rail and 45mm side rails​
• Panel thickness is 51mm
• Boards 95 x 16mm
• Back rail 70mm x 20mm
• Infilled with Tongue & Groove effect boards​

Please Note: dimensions may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.

Fence Post Options – Standard Slotted Jakpost®, Heavy Duty Slotted Jakposts®,  Mi-T® Metal Post​

​Gravel board options-  Standard Gravel Board, Hedgehog Friendly Gravel Board

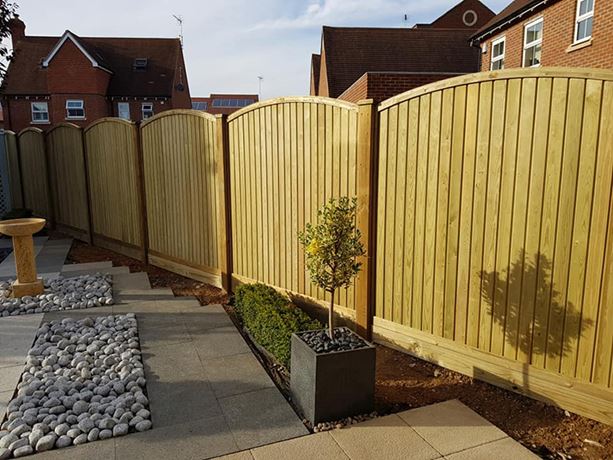

To meet the conditions of the 25 year guarantee, gravel boards are required where panels are in contact with the ground.

​Installation Advice - Installation Instructions ​

Reducing the width of the fence panel – All fence panel are 1.83m wide as standard, if you require a narrower fence panel, you can cut the fence panel down on site using our cut down kit. Please remember to treat any cut ends with Jakcure Cut Treatment, to ensure you adhere to our 25-year guarantee guidelines.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

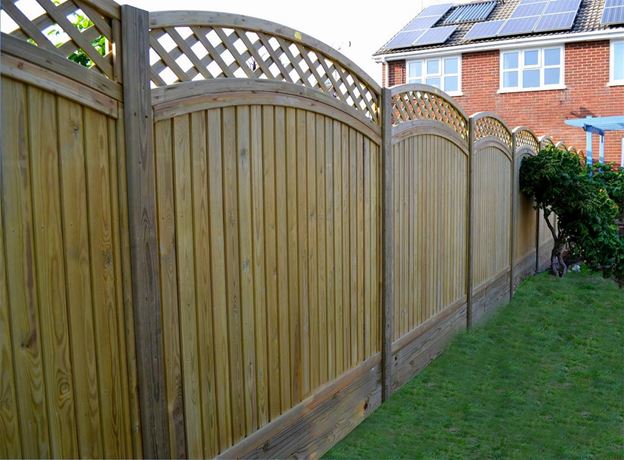

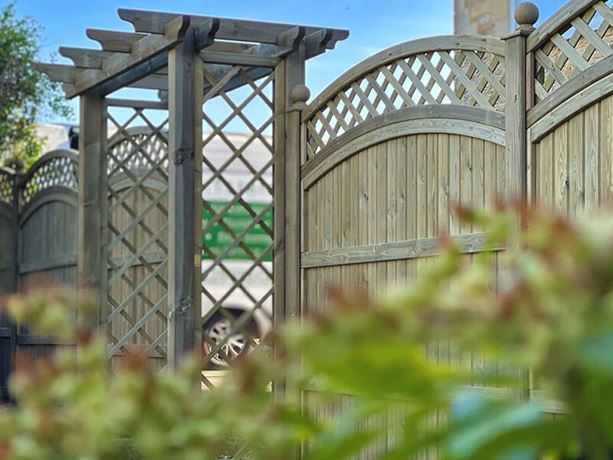

For more information on the matching Convex Trellis Topper panel please see the links below

Convex Topper for Tongue and Groove Convex Panels

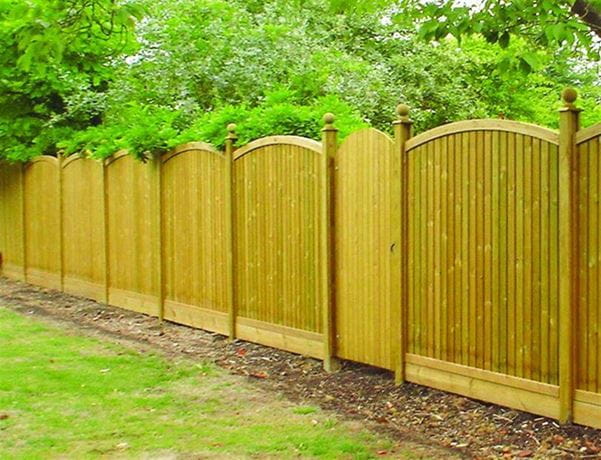

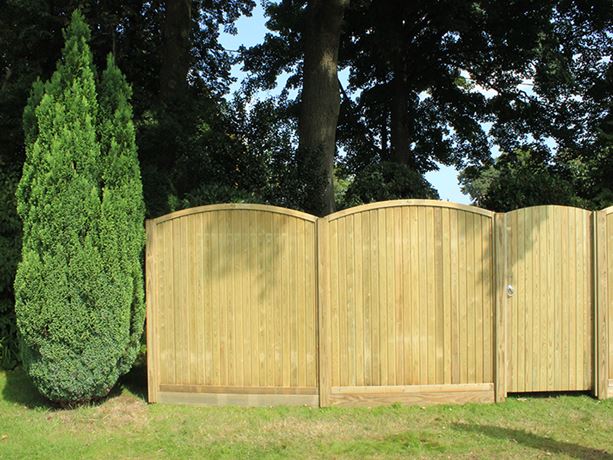

Our Tongue & Groove panels match both Courtyard gates and Brook garden gates. Click on the buttons below:

Courtyard Gates Matching Brook Boarded Gates

More on Components including End Frame Pieces for cutting panels down

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure guarentee conditions. More details of this can be found on our Jakcure T&C's page

Gravel Boards

 If you are installing the product yourself, view our instructions below:

Installing Panel Fencing Instructions

Installing Timber Fence Post Instructions

Document Downloads

• Panel fence instructions
• How to reduce the width of Jacksons Fencing Panels
• Tongue and Groove Convex Panel Spec Sheet
• Q40 - Tongue and Groove Panel - Convex Top
