Featherboard Concave Fence Panels

Featherboard Concave Fence Panels

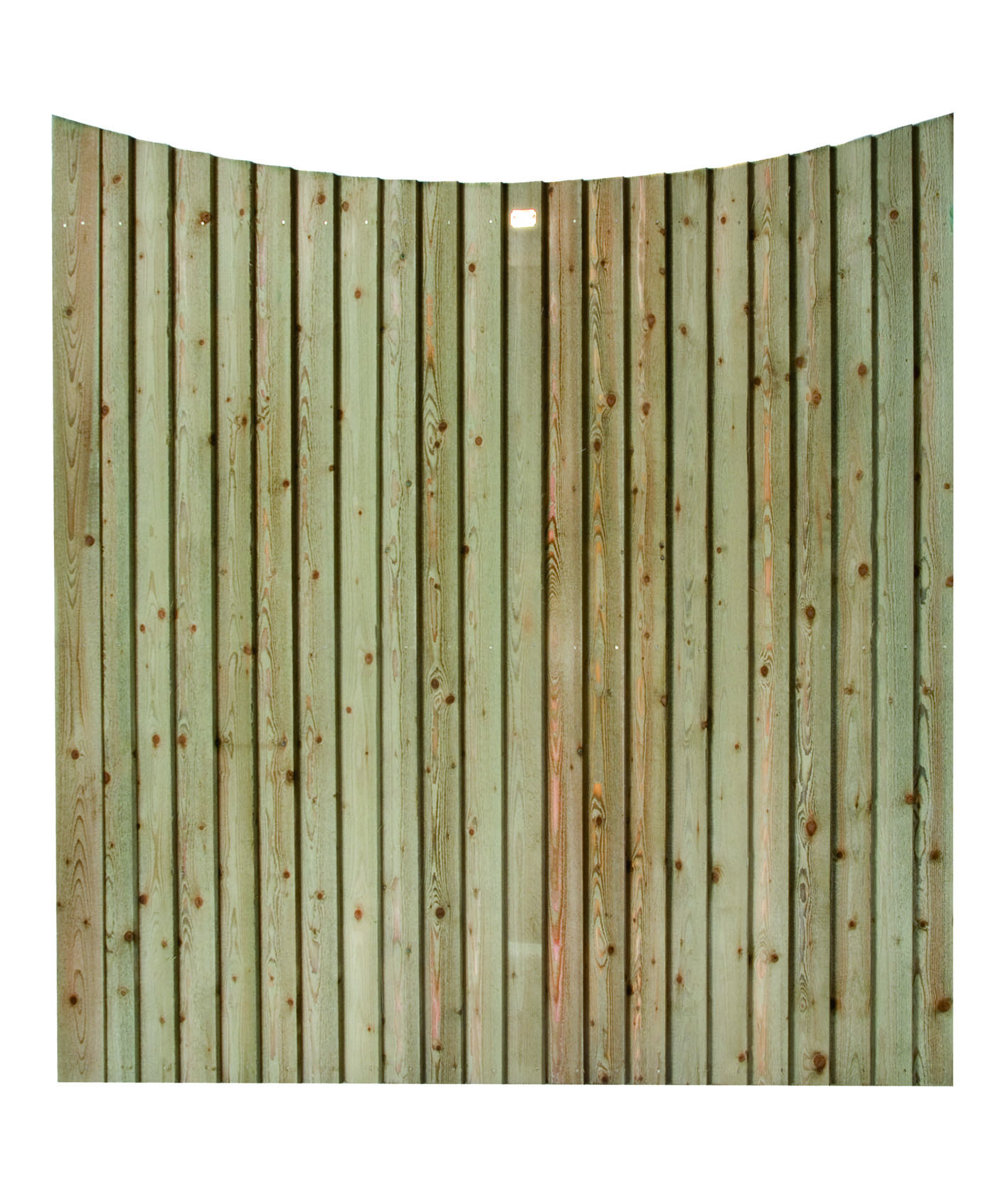

Concave Featherboard panels offer an alternative style from the Convex and Level Top panel; they also have vertical boards but present a dipped arched style of fencing panel by curving downwards from each side of the panel.

All our standard panels are 1.83m wide and 50mm thick. Constructed with two to three rails depending on height and all weathered, clad with 100mm featherboard pales, and galvanised nails used throughout for a longer life.

Featherboard panels are one of the strongest panel fencing available. We have now improved the specification on these panels by making the top and bottom rail heavier, which creates an even stronger fence for you. If you need a narrower panel to complete your fence, it is fine to cut a panel to the correct size on site. Please remember to treat any cut ends with Jakcure Cut Treatment.

Concave Featherboard Panel Heights (1.83m wide) - Heights supplied are the highest point on the panel

Standard drop from sides to middle of Concave panel is 150mm

1.05m / 1.2m / 1.35m / 1.5m / 1.65m / 1.8m

Matching Concave Featherboard Gates are also available to suit 1.2m, 1.5m and 1.8m heights of fencing panels.

Also known as Closeboard fencing, Scalloped Vertical Board Fencing, Closeboard panels or Feather Edge fencing.

Detailed instructions of how to install panel fencing on slotted posts are available.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

Items to consider:

We recommend using our slotted Jakposts for intermediates, ends and corners, click on the button below to see the range

Slotted Posts

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&Cs page.

Gravel Boards

Post Caps add the finishing touch to any fence, view the full range by clicking the button below

Post Caps

Standard Featherboard Panels

Convex Featherboard Panels

Traditional Featherboard

Document Downloads

• Panel fence instructions
• How to reduce the width of Jacksons Fencing Panels
• Featherboard Concave Panel Spec Sheet
• Q40 - Featherboard Panel - Concave Top
• 1050 H Concave Featherboard Panels - J704170sht1
• 1200 H Concave Featherboard Panels - J704170sht2
• 1350 H Concave Featherboard Panels - J704170sht3
• 1500 H Concave Featherboard Panels - J704170sht4
• 1650 H Concave Featherboard Panels - J704170sht5
• 1800 H Concave Featherboard Panels - J704170sht6
• Featherboard Single Gate - Concave Top - J702125sht6
• Featherboard Double Gate - Concave Top - J702125sht7
