Slotted Fence Posts

Please note: we have discontinued our Standard Slotted End Jakposts. Instead we are offering Standard Slotted Intermediate Jakposts with an End Post Strip.

If you require a Slotted End Post, please add an extra Slotted Intermediate Post with End Post Strip

Slotted Posts (Jakpost®) - panel fence posts

Our slotted Jakposts® are designed to work with all of our fencing panels from Jaktop and Palisade to Featherboard, and even our Premier Trellis panels.

All panels slot easily into position and can be secured to the post to create a secure boundary.

Benefits of using Jakposts

• Jakposts reduce damage caused by wind movement when panels are screwed to posts
• No more frost damaged cracked or chipped concrete posts
• Easy to carry - lighter than concrete posts
• Environmentally friendly
• More supportive than square section posts
• Easier to erect than concrete posts
• Complete range of panels to slot in Jakposts
• Gravel boards, capping and finials available
• Heavy Duty post options
• Compare different fence posts here.

25-year Jakcure® guarantee:

Please note: Where possible, avoid cutting, drilling or notching any timber that will be in-ground, as per our 25 year Jakcure® terms and conditions. If occasional sections do have to be cut then Cut Treatment should be applied liberally.

We recommend that all posts should be set in concrete or using a post fix mix at a minimum 0.6m into the ground. Please ask for advice when sizing gate posts. Download Post Installation Instructions

Our timber Jakposts are renowned for their strength and longevity, however some batches of the product may show a disruption to the timber around the nails which is caused as the nail is driven into the posts.  This is due to the variation in raw material and the force in which the nail is driven.  If it does cause a visual upset, the timber around the nail can be trimmed with a sharp craft knife or be sanded lightly. This will not affect the structural integrity of the product, nor the 25 year guarantee.

Standard Jakpost®

• 100mm x 100mm nominal planed finish with two 54mm x 25mm slots for fence panels

Heavy Duty Jakpost®

• 120mm x 124mm nominal, planed finish with two 54mm x 25mm slots for fence panels

Angled Slotted Jakpost®

Our angled slotted Jakpost® has been designed to help those tricky fence runs. Not every garden or fence run is straight or every corner 90 degrees. Therefore, we have designed and manufactured an angled fence post allowing a change of direction between 30 to 45 degrees.

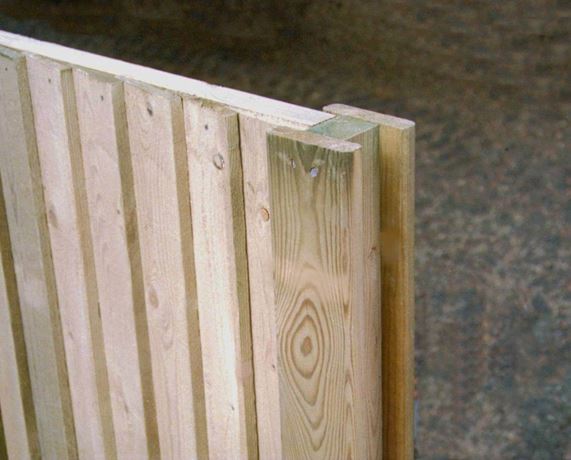

Slotted post at end of the run

For posts at the end of a run, please add extra slotted interpost and End Post Infill Strip to your order.

Useful Note 1:

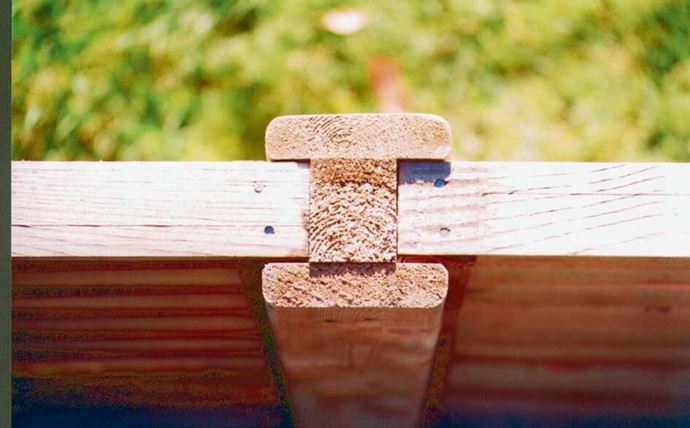

54mm wide x 25mm deep slot is to allow a clearance on our 50mm wide panel framing.

Useful Note 2:

To accommodate for a change of direction in fence line for an angle not equal to 90 degrees you can use our Angled Slotted Jakpost which allows a change of direction between 30-45 degrees.

Useful Note 3:

When calculating total length of run of panel fencing on standard slotted posts add 1830mm for each panel plus 75mm per end and 50mm per intermediate post.

Useful Note 4:

Include post fixing mix to give your posts proper support; we recommend using 3 bags per post for soft ground or exposed areas or 2 bags per post for hard ground or smaller panels, just add water to mix please use code 648070

Heavy Duty Slotted Fence Posts are available and should be used when the overall fence height is 2.0m and over, where there is the possibility of high wind load, or the fence is steeply stepped. Jakposts are ideal when adding trellis topping panels.

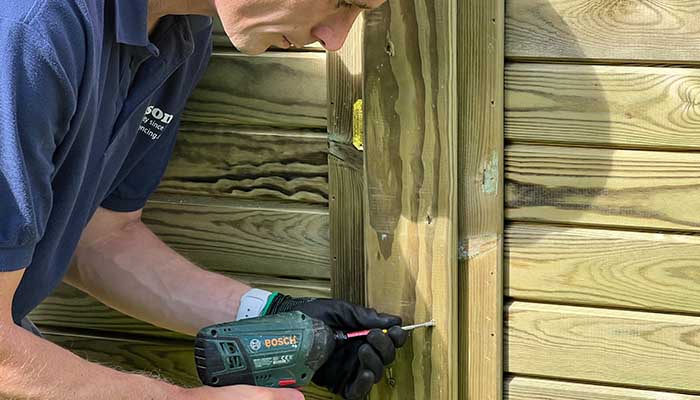

We recommend using 6 screws per panel or 12 per panel if using capping rails.

60mm Screws, Self-Drilling Countersunk Stainless Steel are available in pack of 100 or 200 to secure panels to posts,see codes:

The following table is a guide to help you to establish the correct post length and product code for different fence heights without Gravel Boards.

The following table is a guide to help you to establish the correct post length and product code for different fence heights with Gravel Boards.

Below shows the four types of slotted Jakpost® without capping in plan view:

1.Corner Fence Post includes a timber support battern

2.Intermediate Fence Post

3.Angled Fence Post

809900 for pack 200 Torx head
809911 for pack 100 Torx head

Panel Height	Inter	Corner	HD Inter	HD End	HD Corner	Post Length
0.75m/0.9m	667200	667220				1.5m
1.05m/1.2m	667300	667330				1.8m
1.4m/1.5m	667400	667440				2.1m
1.65m/1.85m	667500	667550				2.4m
2.0/2.1m	667800	667880	669000	669011	669010	2.7m
Above 2.1m	Use Heavy Duty Slotted Fence Posts

Panel Height (Excluding GravelBoard)		Height Including Gravel Board	Inter	Corner	HD Inter	HD End	HD Corner	Post Length
0.9m/1.05m		1.05m/1.20m	667300	667330				1.8m
1.2m/1.35m		1.35m/1.50m	667400	667440				2.1m
1.5m/1.65m		1.65m/1.80m	667500	667550				2.4m
1.8m		1.95m	667800	667880	669000	669011	669010	2.7
Above 2.0m		Use Heavy Duty Slotted Fence Posts

If you are struggling to know which fence panel you require, use our fence post comparison tool to easily compare each post.

Compare Fence Posts

Heavy Duty versions of these slotted Jakpost® are also available, click below to explore.

Heavy Duty Slotted Jakpost®

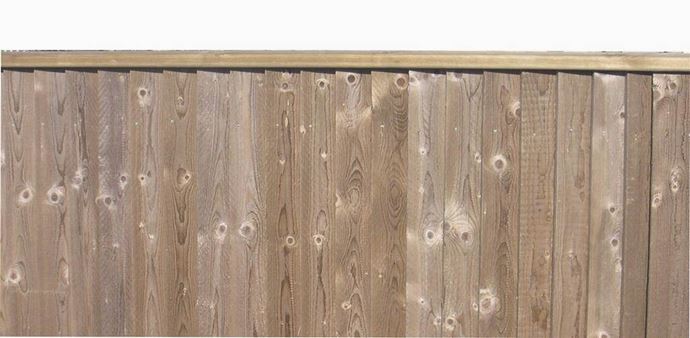

Note: Don't forget capping rails.

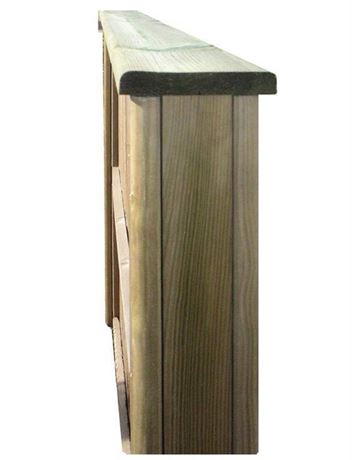

Capping Rails 1.875m x 120mm x 25mm (667700) for use with Intermediate posts.

Capping Rails 1.925m x 120mm x 25mm (667772) for use with End/Corner posts.

Gravel Boards are 150mm high 25mm thick and 1.83m long use code (667600).

Explore our whole range of fence posts and accessories below.

Fence Posts

If you a require a fence to have a corner but not as sharp as 90 degrees, we now offer a 30- 45 degree angled fence post that will give a seamless look. The other option is to use  two end posts are installed back to back as shown in the image

Document Downloads

• Q40 Jakposts and gravel boards.pdf
• Fence Post Erection Installation
• Slotted Jakpost Spec Sheet
